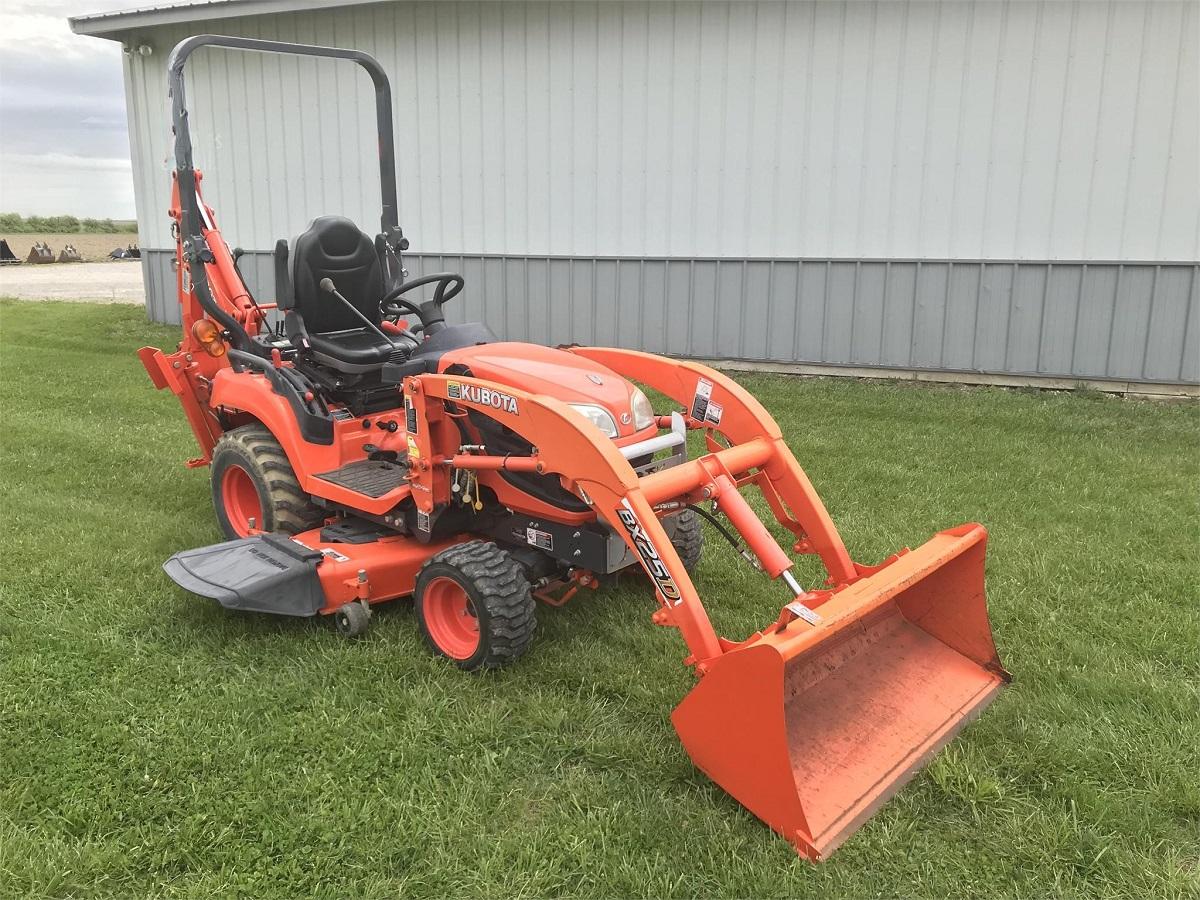

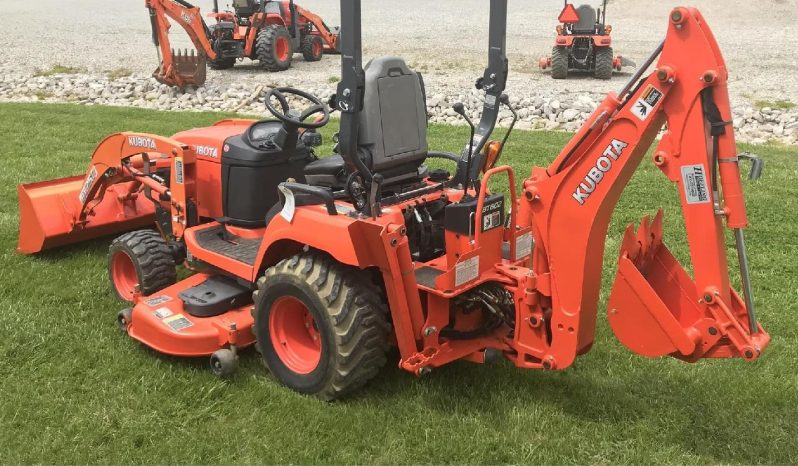

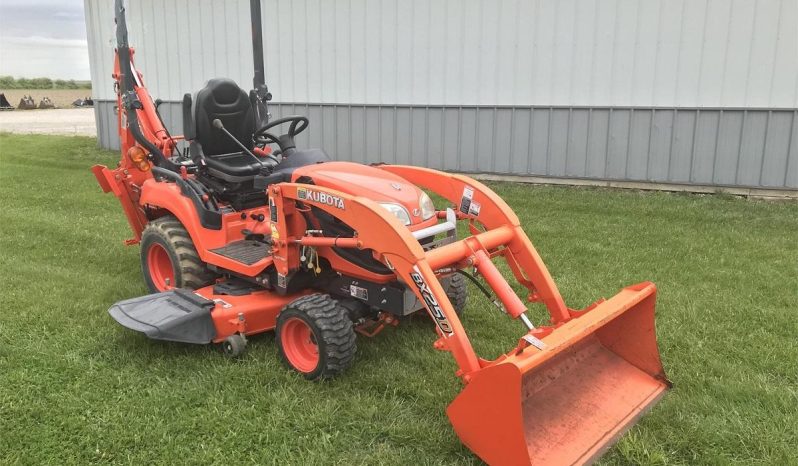

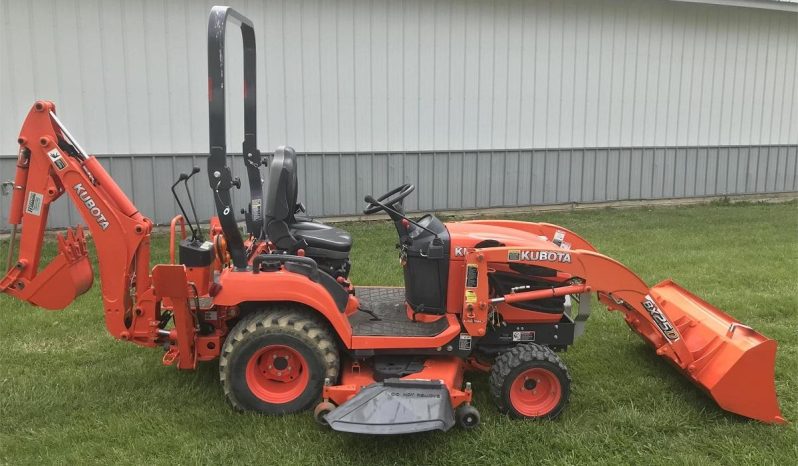

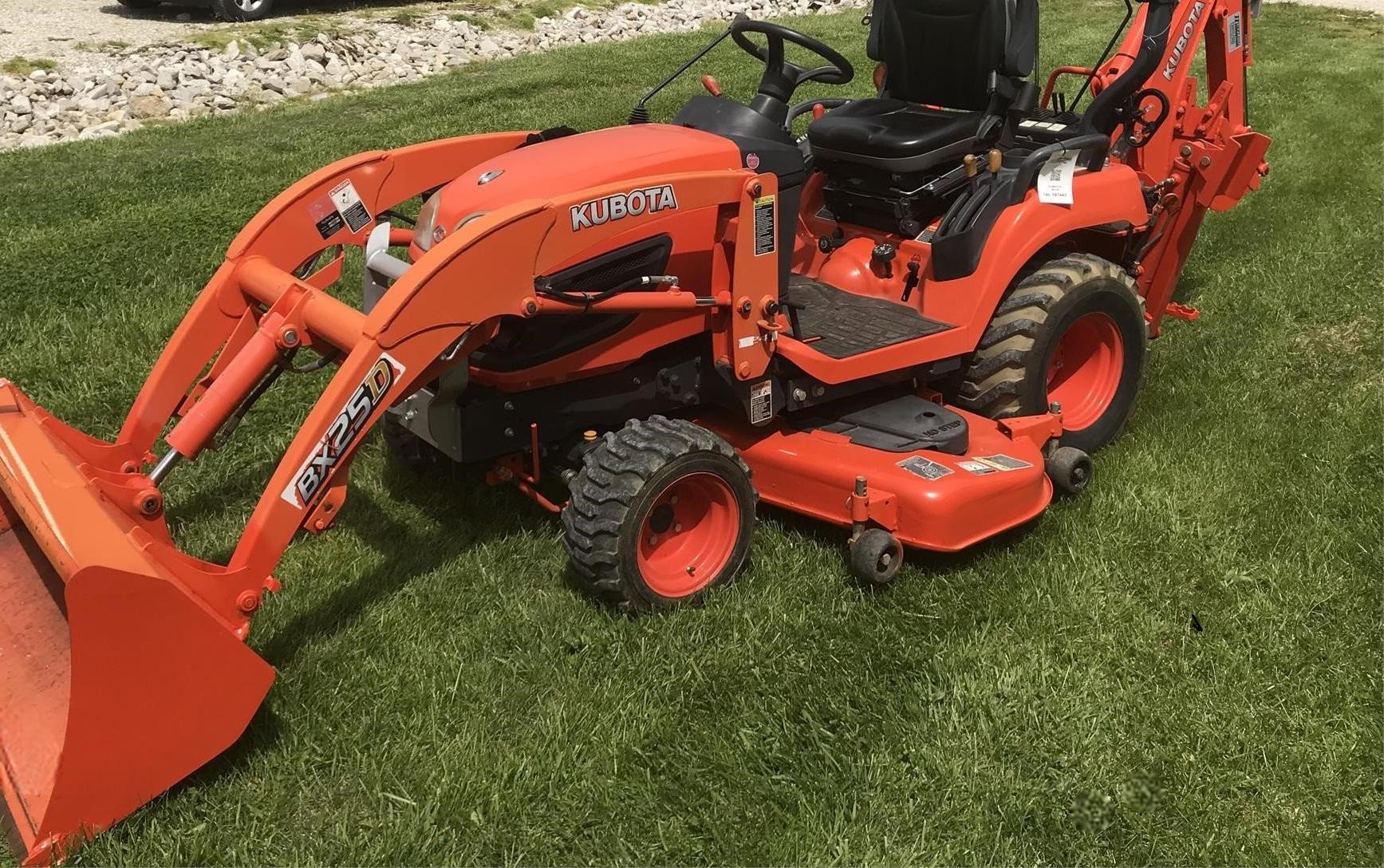

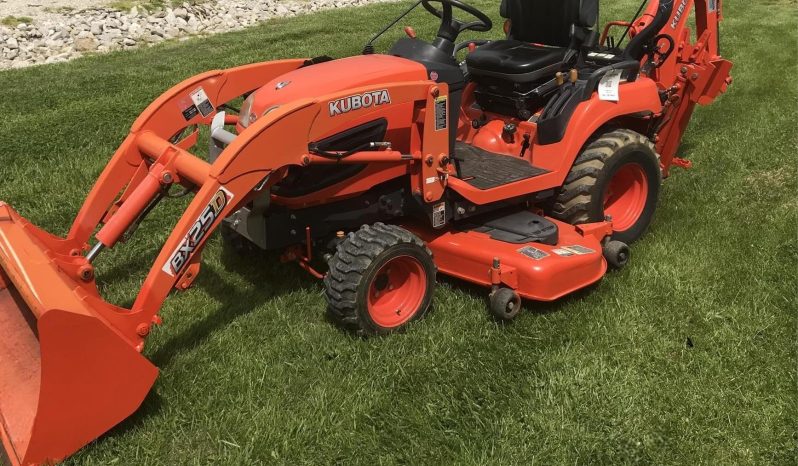

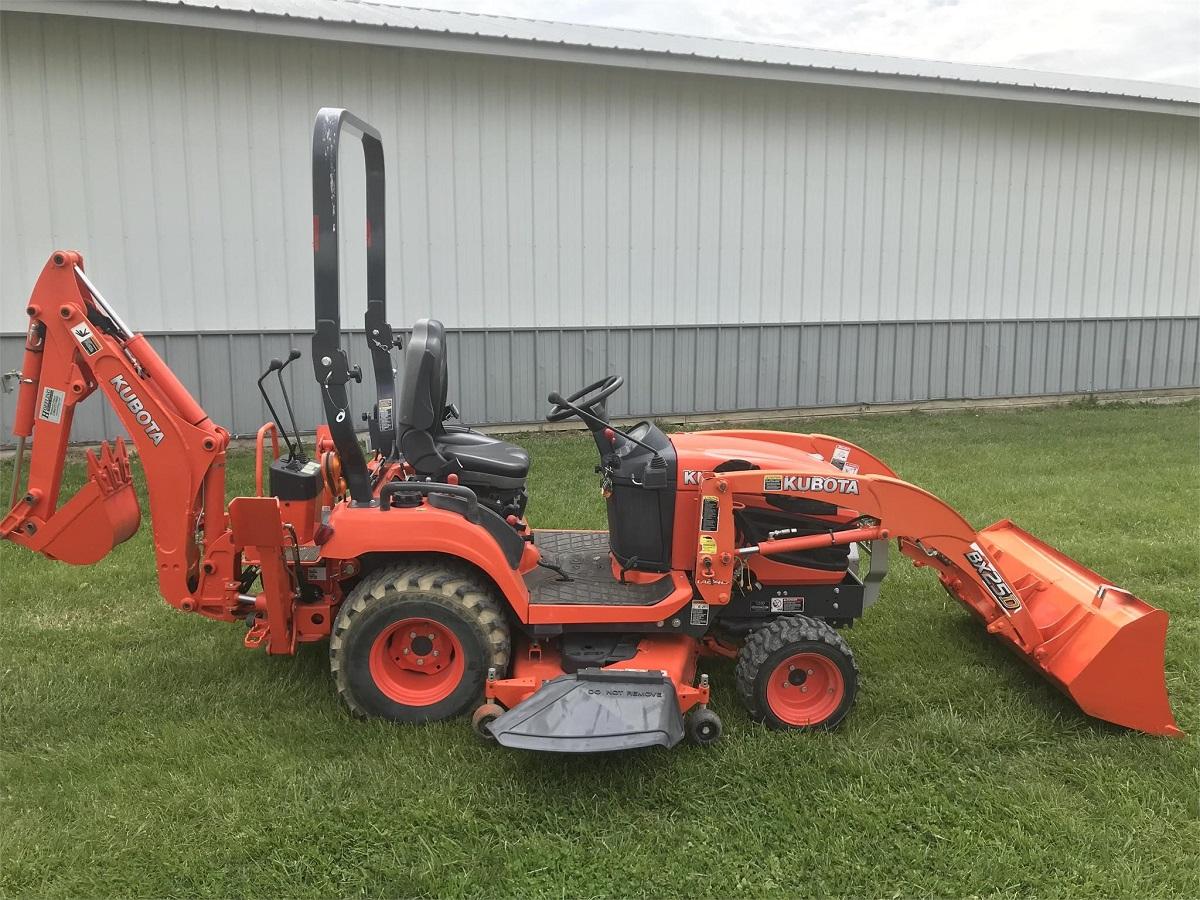

The 2017 Kubota BX25D is a versatile sub-compact tractor built for landscaping, gardening, property maintenance, and light construction. With only 697 hours and equipped with a front loader, backhoe, and mower, this machine is ready to handle a wide range of tasks efficiently.

Key Specifications:

  • Engine: Kubota D902, 3-cylinder liquid-cooled diesel

  • Power: 23 HP (17.2 kW) @ 3,200 rpm

  • Displacement: 898 cc

  • Fuel Capacity: 25 L

  • Transmission: 2-range hydrostatic (forward/reverse)

  • Drive System: Selectable 2WD / 4WD

  • Brakes: Wet disc

  • Steering: Hydrostatic power steering

Dimensions & Weight:

  • Length (with 3-point hitch): 2.43 m

  • Width (with turf tires): 1.13 m

  • Height (with ROPS): 2.22 m

  • Wheelbase: 1.40 m

  • Ground Clearance: 220 mm

  • Weight (tractor only): 720 kg

  • Weight (with loader & backhoe): ~1,120 kg

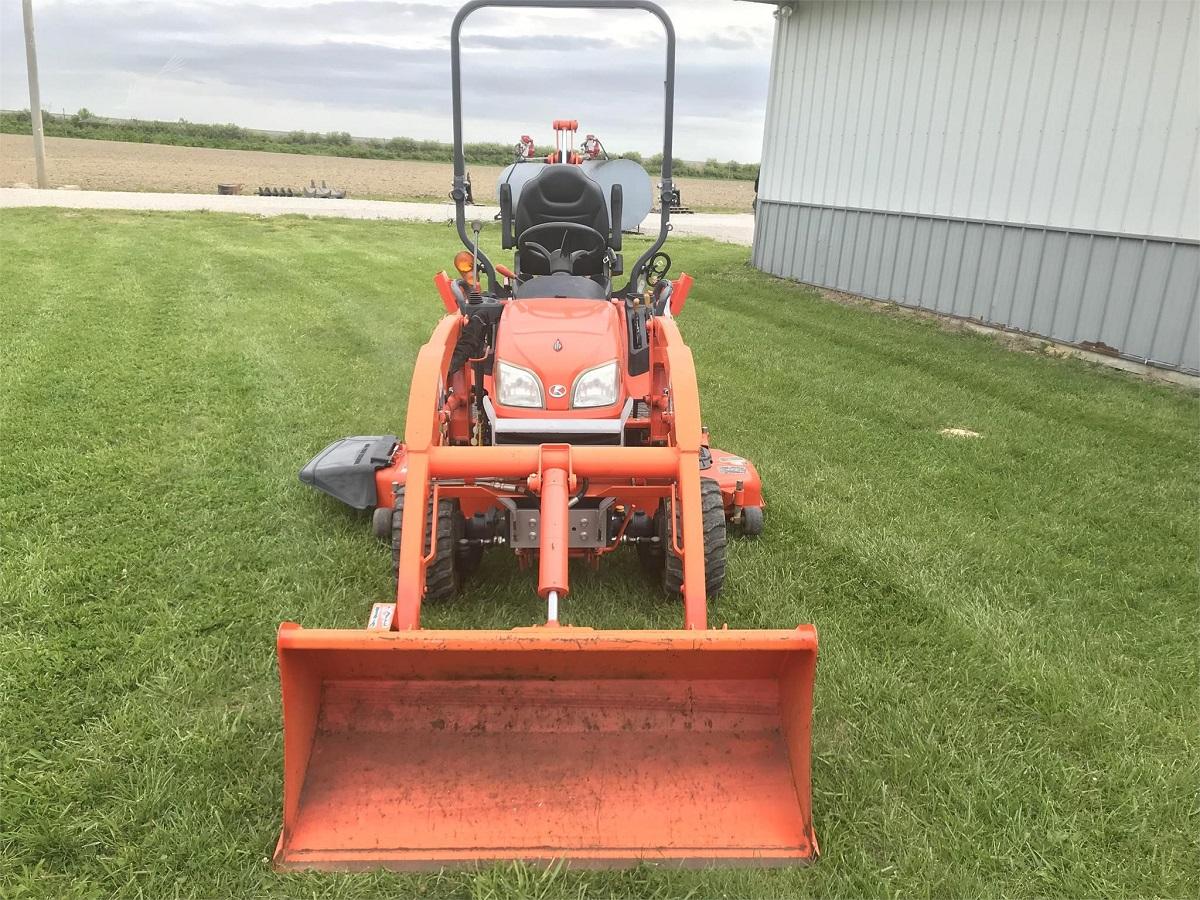

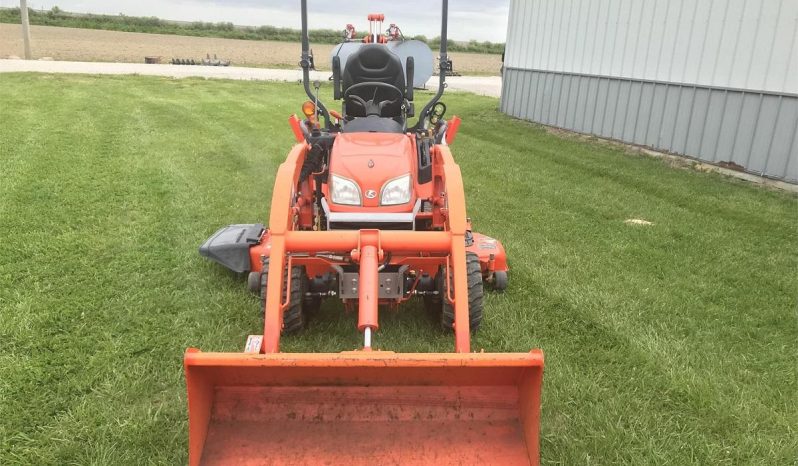

Loader (LA240A):

  • Max lift height: 1.81 m

  • Dump clearance: 1.33 m

  • Reach at ground: 1.39 m

  • Lift capacity (500 mm forward @ max height): 235 kg

  • Bucket width: 1.22 m (48 in)

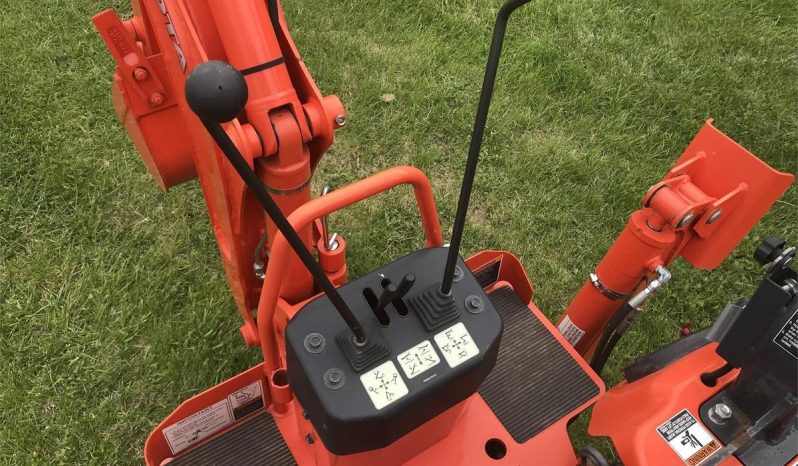

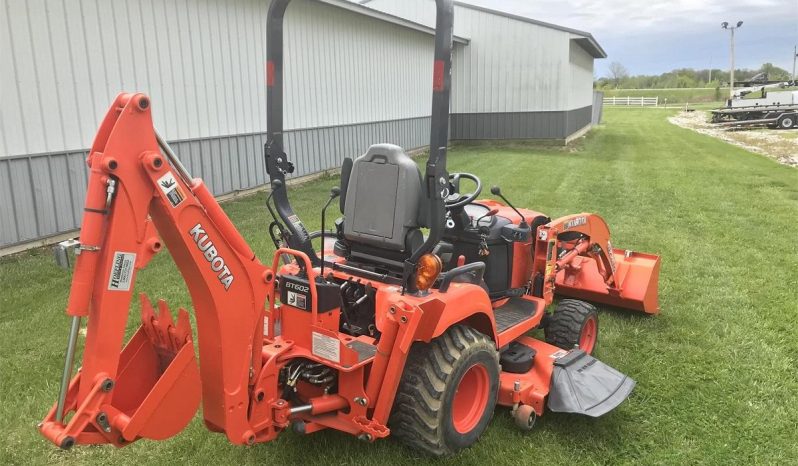

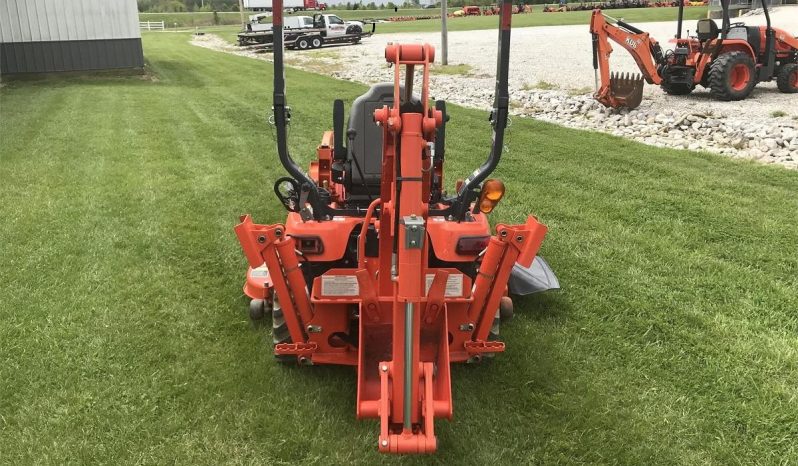

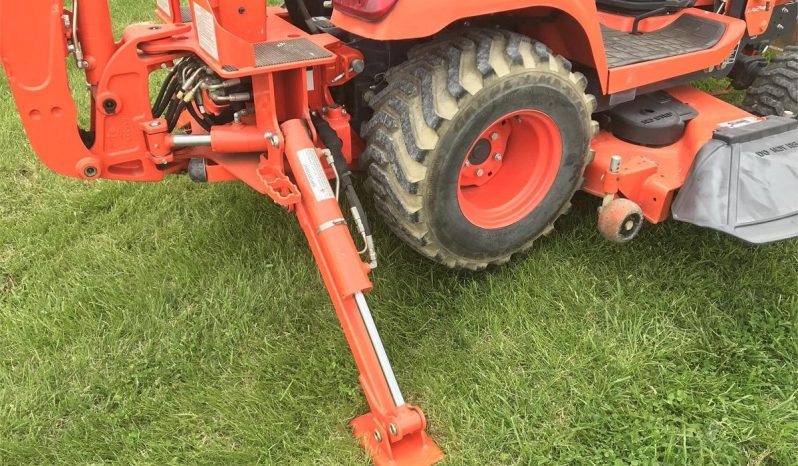

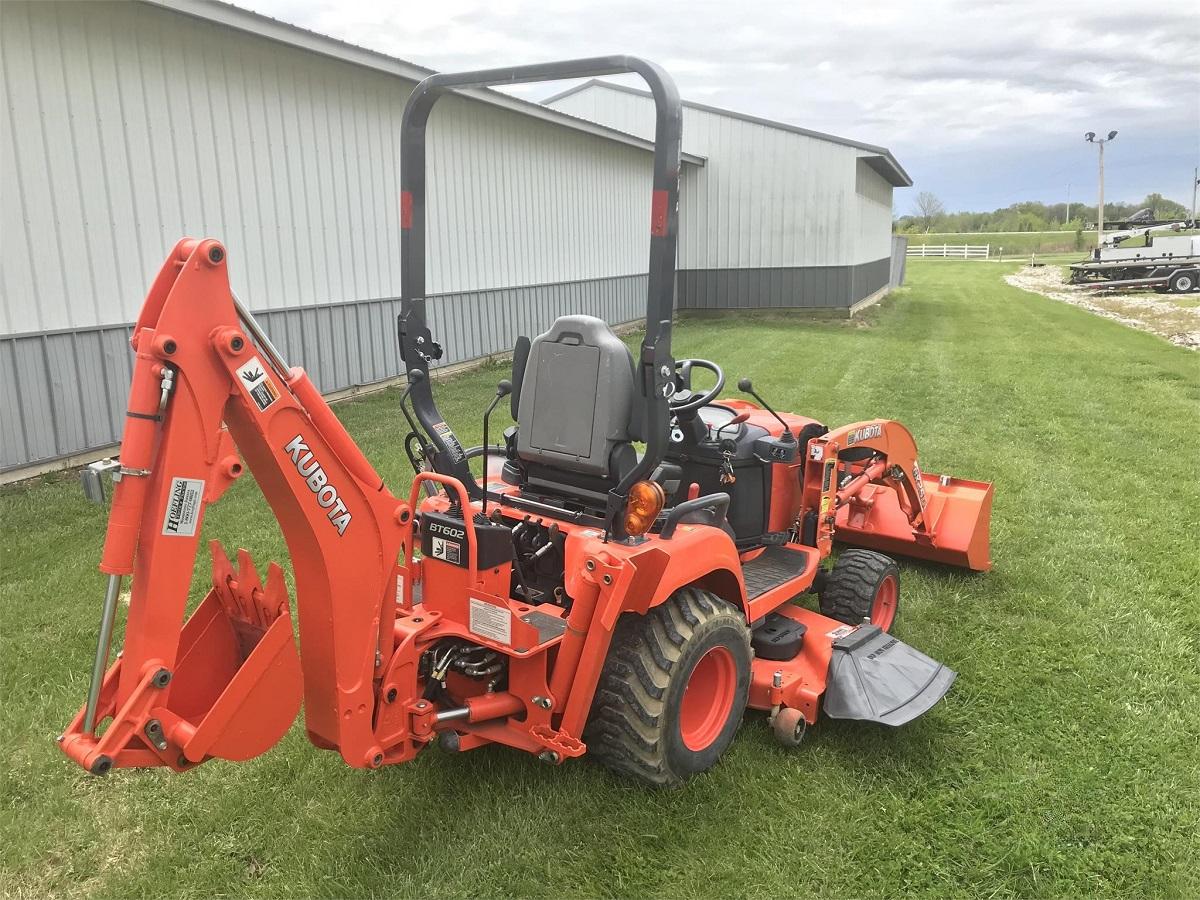

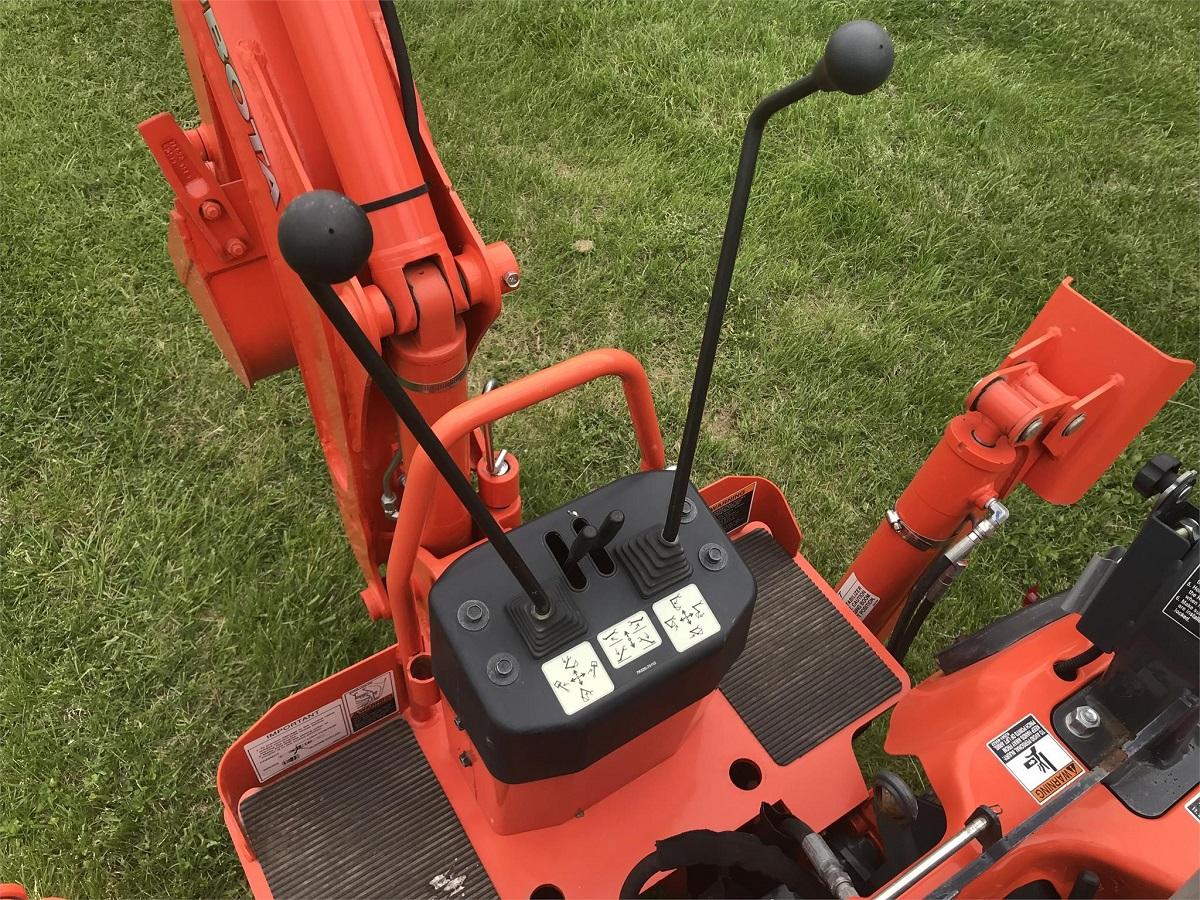

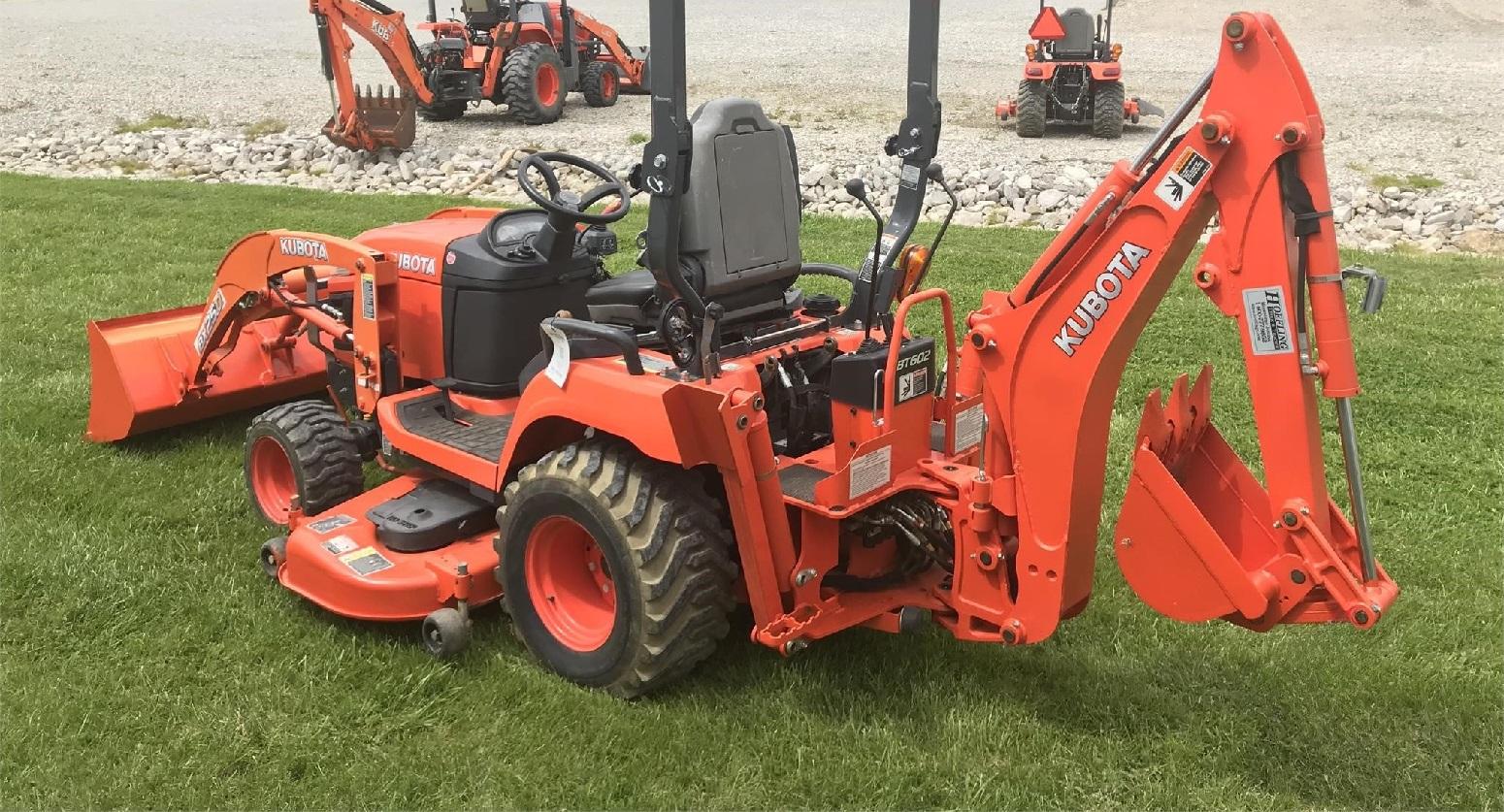

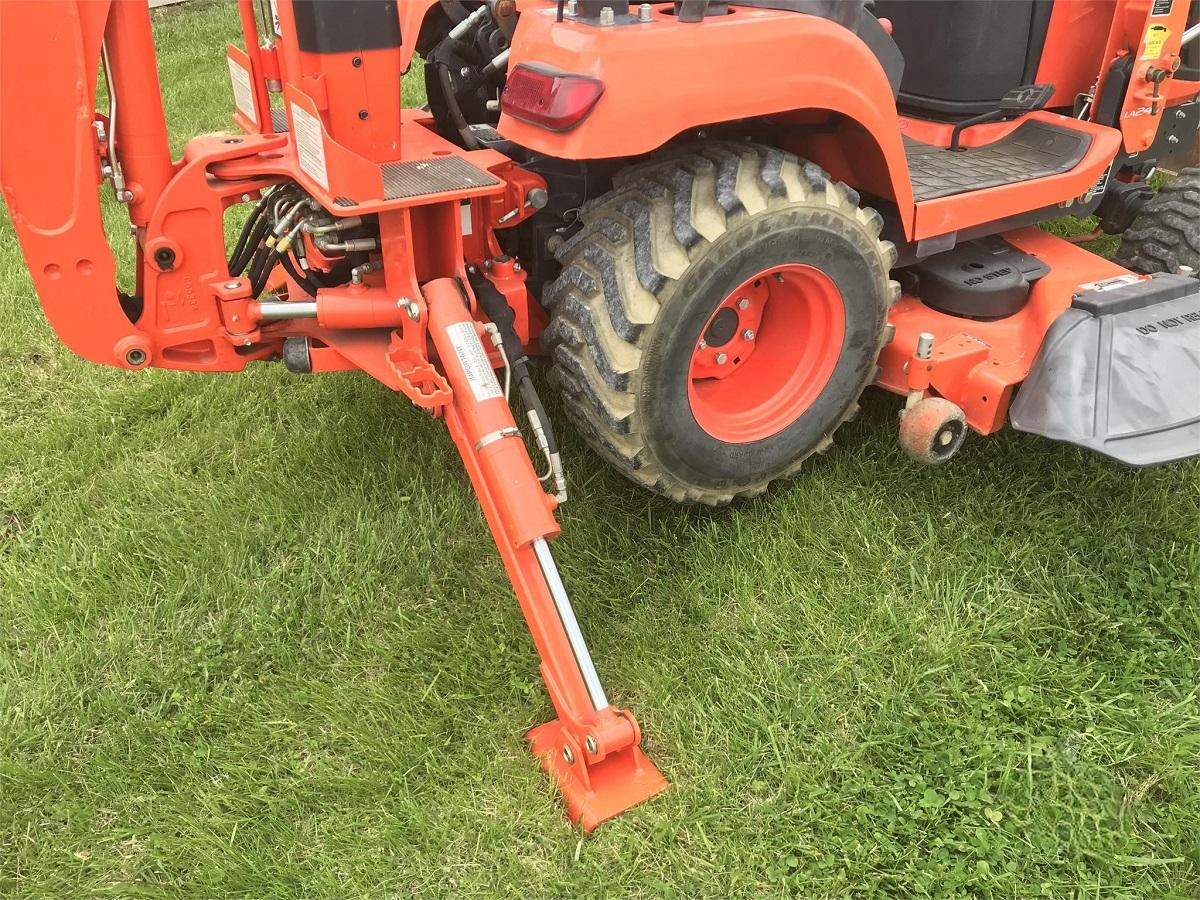

Backhoe (BT602):

  • Digging depth: 1.84 m (6 ft 1 in)

  • Loading height: 1.53 m

  • Reach from swing pivot: 2.61 m

  • Bucket digging force: 5,209 N (1,171 lbs)

  • Bucket rotation: 180°

Features:

  • ROPS (Roll-Over Protective Structure) for safety

  • Quick Hitch System for fast attachment changes

  • Hydraulic System: Open-center, 23.5 L/min pump output

  • 3-Point Hitch (Category I) – optional

  • Lift capacity at 24" behind pin: 310 kg

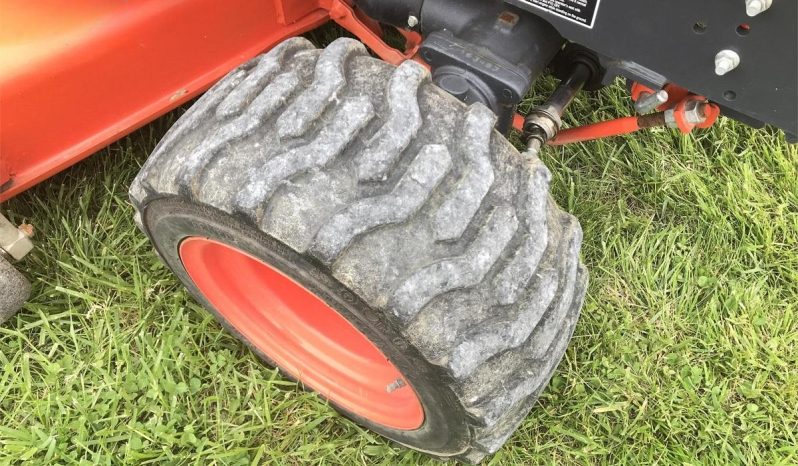

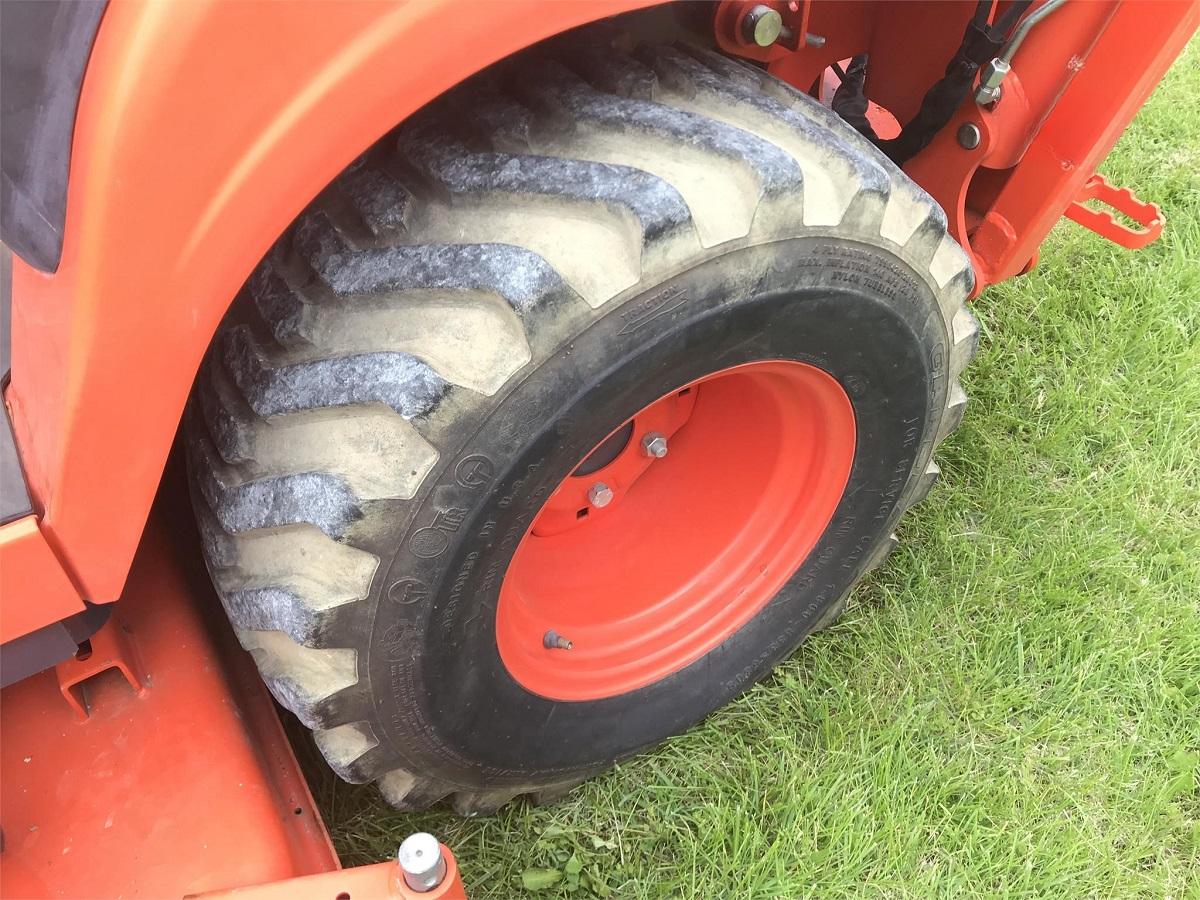

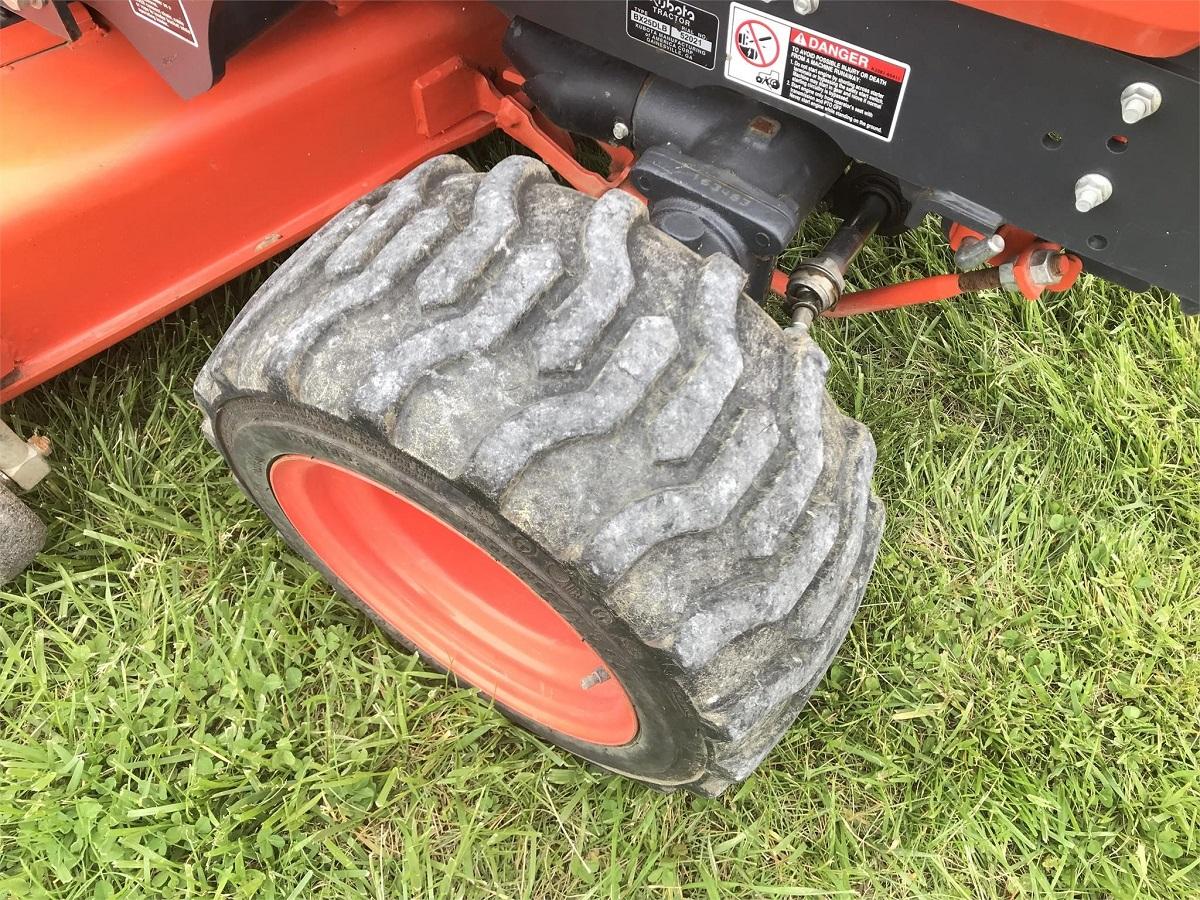

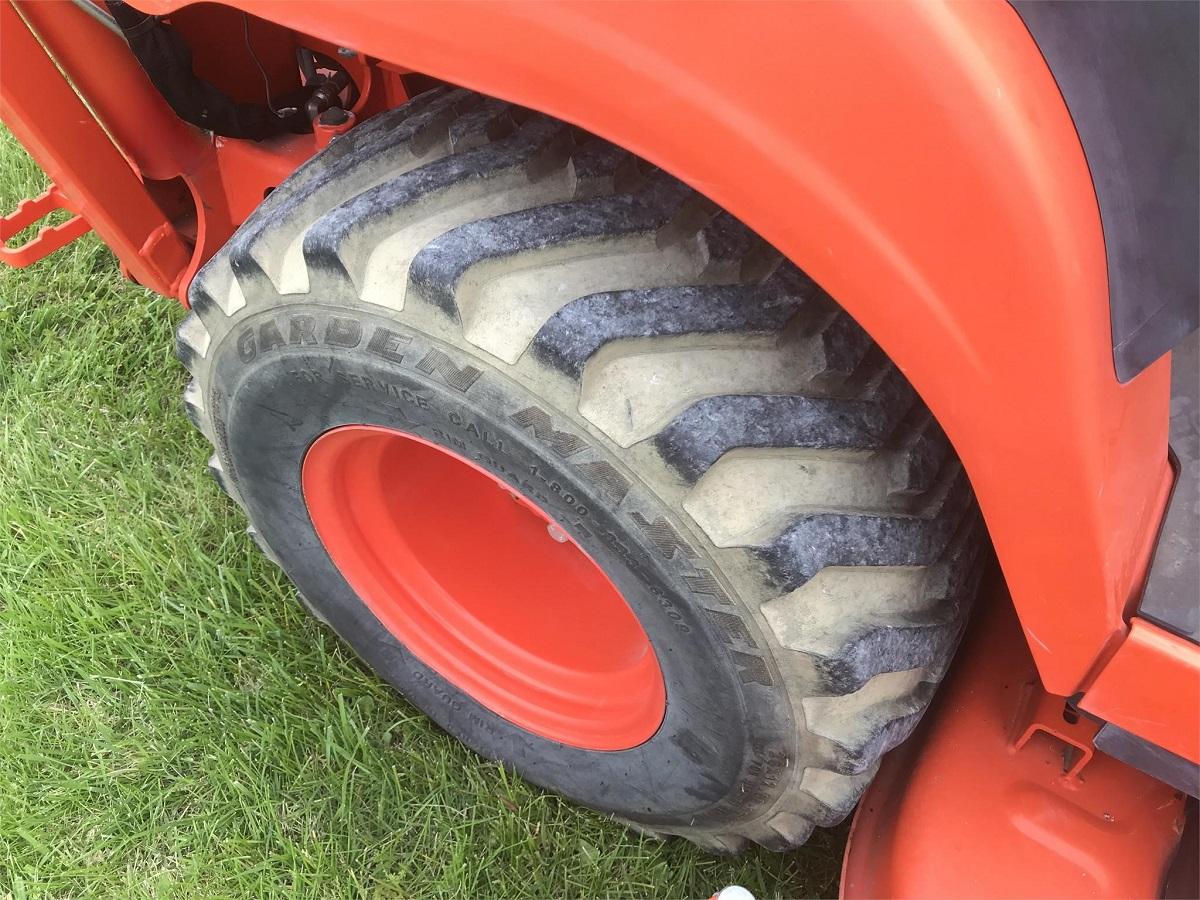

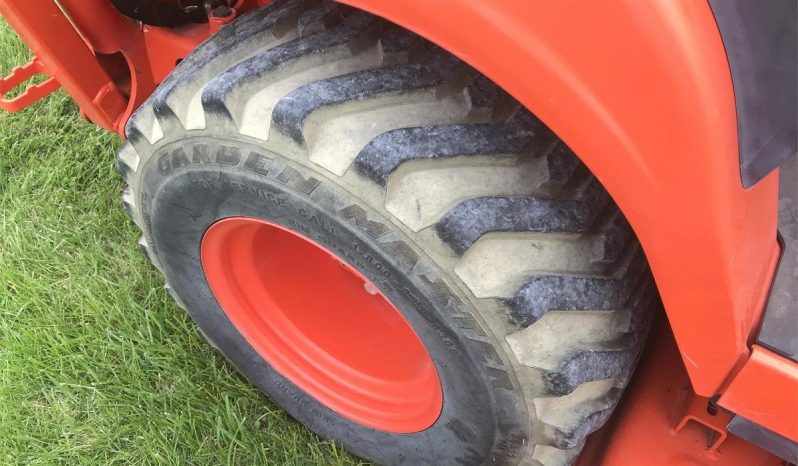

  • Tires: Front 18x8.5-10 / Rear 26x12-12

Condition:

  • Year: 2017

  • Hours: 697

  • Status: Used, well-maintained
